API订阅写入示例

1. 依赖

使用Equipment Client库需要配置maven仓库访问和导入edge-management-client的依赖库

maven settings.xml仓库访问配置：

  <servers>
    <server>
      <id>snapshot</id>
      <username>matrix</username>
      <password>hVisions!maven</password>
    </server>
    <server>
      <id>release</id>
      <username>matrix</username>
      <password>hVisions!maven</password>
    </server>
    <server>
      <id>nexus</id>
      <username>matrix</username>
      <password>hVisions!maven</password>
    </server>
  </servers>
   <mirrors>
	<mirror>
		<id>release</id>
		<mirrorOf>*</mirrorOf>
		<name>nexus hvisions</name>
		<url>http://58.247.122.126:8022/repository/maven-public/</url>
	</mirror>
  </mirrors>

gradle：

    implementation 'com.hvisions:edge-management-client:2.2.2'

maven pom：

    <dependency>
        <groupId>com.hvisions</groupId>
        <artifactId>edge-management-client</artifactId>
        <version>2.2.2</version>
    </dependency>

2. 配置RabbitMQ, Redis, Token获取

Equipment Client库基于SpringBoot进行开发，使用了RabbitMQ，Redis进行数据处理，通过集成HttpClient方式实现接口调用。因此在使用时，需要在SpringBoot
(application. yml)对RabbitMQ、Redis、Token获取进行配置。

配置示例如下:

spring:
  redis:
    host: 127.0.0.1
    port: 6379
iot:
  broker:
    rabbitmq:
      host: ${rabbitmq.host:127.0.0.1}
      port: ${rabbitmq.port:5672}
      username: ${rabbitmq.username:guest}
      password: ${rabbitmq.password:guest}
      exchangeName: ${rabbitmq.exchangeName:hiot.subscribe}
      exchangeType: ${rabbitmq.exchangeType:topic}
      queueType: ${rabbitmq.queueType:classic}
      maxLength: ${rabbitmq.maxLength:50000}
      overflow: ${rabbitmq.overflow:reject-publish}
      enabelSsl: ${rabbitmq.enabelSsl:false}
      keyStore: ${rabbitmq.keyStore:rabbitmq-client.p12}
      keyStorePassword: ${rabbitmq.keyStorePassword:password}
      trustStore: ${rabbitmq.trustStore:rabbitmq-server.keystore}
      trustStorePassword: ${rabbitmq.trustStorePassword:password}
      basicAck: ${rabbitmq.basicAck:true}
api:
  setting:
    server: http://127.0.0.1:9000
    username: admin
    password: 111111
    enableAuth: true

2.1 Redis配置

Redis采用的是SpringBoot实现的标准的Redis配置，详细配置项参考SpringBoot官方文档Redis部分 ( https://docs.spring.io/spring-boot/docs/current/reference/htmlsingle/#application-properties.data )

2.2 RabbitMQ配置

RabbitMQ配置说明如下：

2.3 Token获取配置

Equipment Client库通过配置API Token获取方式，实现对Client库提供的API进行调用。

Token配置说明如下：

3. 启动类中扫描依赖中的Bean

启动类通过注解@ComponentScan将路径为"com.hvisions.edge.equipment"包下的Bean扫描到当前框架中

@ComponentScan(basePackages = {"com.hvisions.edge.equipment"})

4.订阅接口调用

4.1 调用订阅EquipmentService接口

调用订阅接口入参描述：

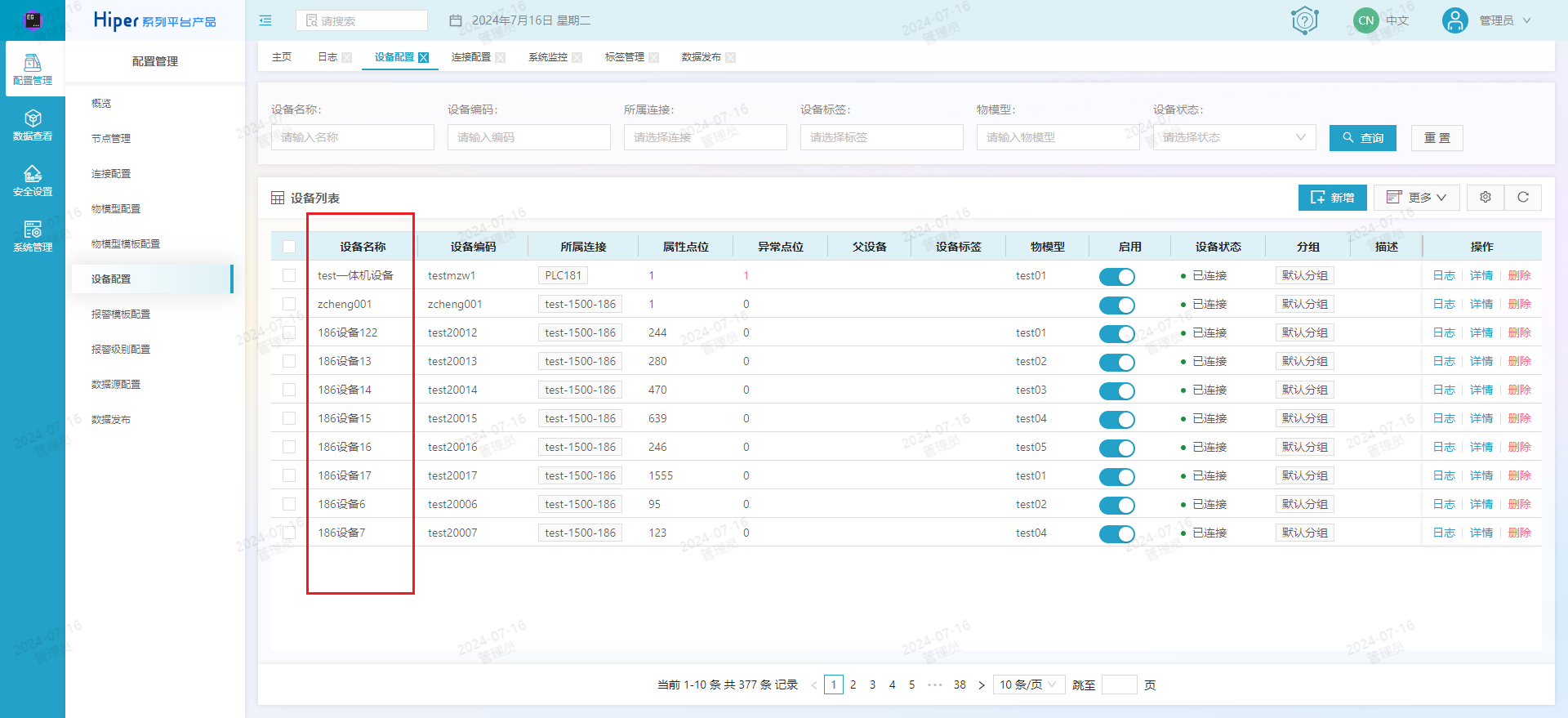

• equipmentName：指设备名称，对应HiperMATRIX中设备管理列表的设备名称。

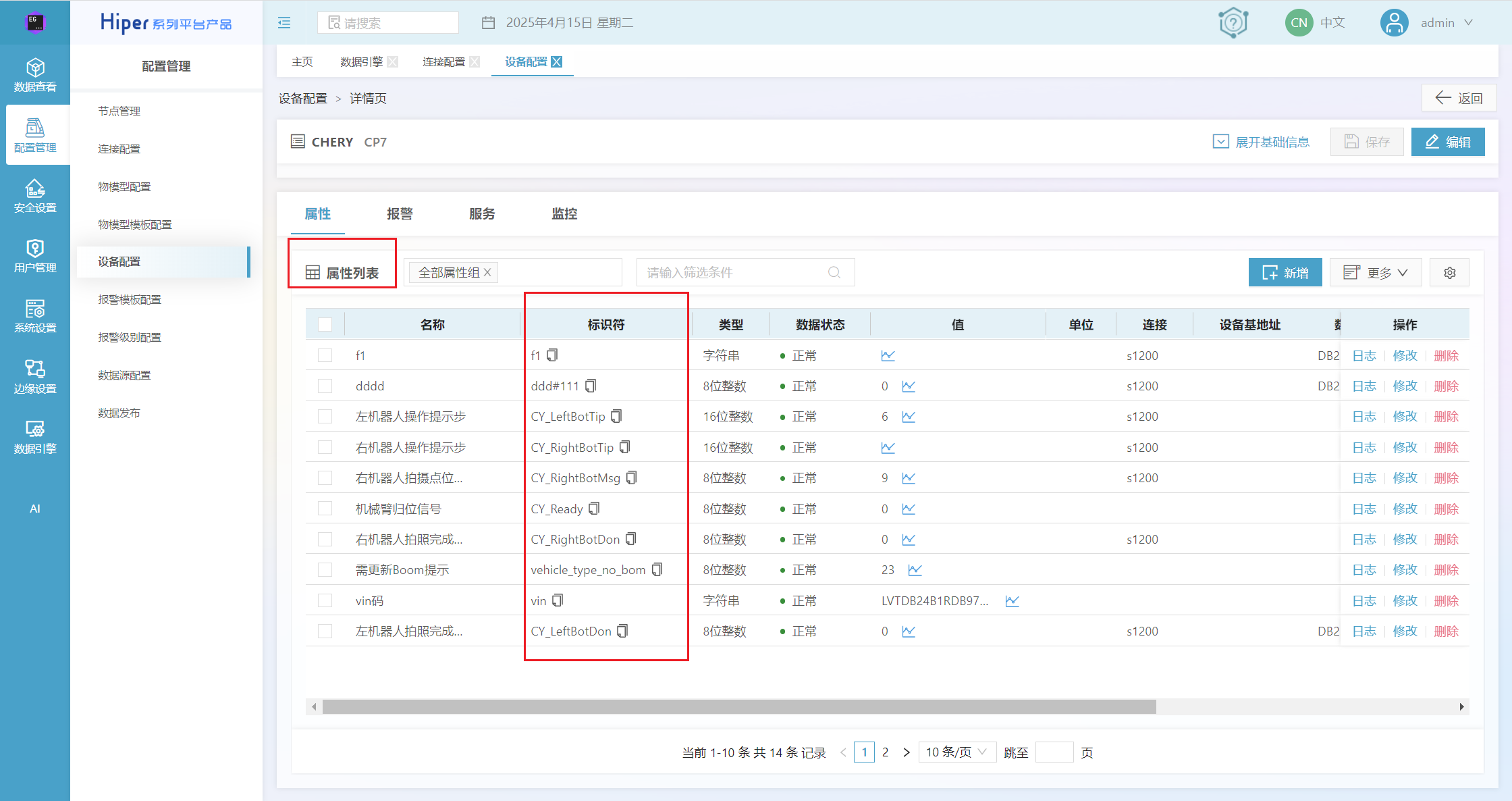

• fieldName:指设备标识符，对应HiperMATRIX中设备管理中的设备属性列表的标识符。

Equipment Client提供了四种不同设备属性订阅接口：

• 根据设备id(equipmentId)订阅设备单个属性标识符(fieldName)和多个属性标识符(fieldNames)采集数据接口

     subsById(String equipmentId, String fieldName, EquipmentService.FieldConsumer fieldConsumer,java.util.function.Consumer<BrokerEvent> eventConsumer);
     subsById(String equipmentId, List<String> fieldNames, EquipmentService.FieldConsumer fieldConsumer,java.util.function.Consumer<BrokerEvent> eventConsumer);

• 根据设备名称(equipmentName)订阅设备单个属性标识符(fieldName)和多个属性标识符(fieldNames)采集数据接口

     subsByName(String equipmentName, String fieldName, EquipmentService.FieldConsumer fieldConsumer,java.util.function.Consumer<BrokerEvent> eventConsumer);
     subsByName(String equipmentName, List<String> fieldNames, EquipmentService.FieldConsumer fieldConsumer,java.util.function.Consumer<BrokerEvent> eventConsumer);

• 根据设备编码(equipmentCode)订阅设备单个属性标识符(fieldName)和多个属性标识符(fieldNames)采集数据接口

     subsByCode(String equipmentCode, String fieldName, EquipmentService.FieldConsumer fieldConsumer,java.util.function.Consumer<BrokerEvent> eventConsumer);
     subsByCode(String equipmentCode, List<String> fieldNames, EquipmentService.FieldConsumer fieldConsumer,java.util.function.Consumer<BrokerEvent> eventConsumer);

• 自定义队列名称(queueName)订阅多组设备的属性标识符List<EquipmentField>, EquipmentField包含设备id(equipmentId),属性标识符(fieldName)采集数据接口

     void subsGroup(String subName, List<EquipmentField> equipFieldNames, FieldConsumerTs fieldConsumer,java.util.function.Consumer<BrokerEvent> eventConsumer);

4.2 回调接口FieldConsumer描述

FieldConsumer入参描述：

    public interface FieldConsumer {
        void accept(EquipmentData equipmentInfo, String fieldName, Object value);
    }

4.3 回调接口状态BrokerEvent描述

BrokerEvent入参描述：

    public interface FieldConsumer {
        void accept(EquipmentData equipmentInfo, String fieldName, Object value);
    }

5. 订阅接口案列

5.1 引用EquipmentService

声明EquipmentService，并通过注解@Autowired注入到当前使用类中

  @Autowired
  EquipmentService equipmentService;

5.2 引用注入的EquipmentService，调用订阅函数

如根据设备名称(equipmentName)为海德汉机床，设备属性标识符(fileName) main_axle_load 调用函数subscribeByName,
并将订阅数据写入到回调函数中

   equipmentService.subsByName(equipmentName, fileName, (equipmentData,fieldName, value)  -> {
        log.info("订阅设备数据:{}", equipmentData);
        log.info("订阅设备标识符:{}", fileName);
        log.info("订阅采集数据:{}", value);
   },brokerEvent -> {
            log.info("rabbitmq连接名称:{}",brokerEvent.getName());
            log.info("连接状态:{}",brokerEvent.getStatus());
            log.info("连接日志内容:{}",brokerEvent.getMsg());
    });

回调函数返回结果为：设备数据(equipmentData),设备标识符(fieldName), 订阅数据(value)

equipmentData数据格式:

{
  "id":"6879310550845624320",
  "name"：”海德汉机床",
  "code":"海德汉机床"
 }

fieldName数据格式:

{
  fieldName:"main_axle_load"
}

value数据格式:

{
  "id":"6879310550845624320",
  "timestamp":"2022-02-23T17:53:22.346+08:00",
  "_type":"haidehanjichuang",
  "main_axle_load":0.8700000047683716
}

5. 数据写入案列

声明HttpBuilderInstance，并通过注解@Autowired注入到当前使用类中

 @Autowired
 private HttpBuilderInstance httpBuilder;

构建提供API写入的EquipmentClient，httpBuilder为Springboot的Bean在全局变量加载之后，因此不要将EquipmentClient定义为全局变量。

 EquipmentClient equipmentClient = httpBuilder.getInstance().getClient(EquipmentClient.class);

如根据设备编码(code)为海德汉机床，设备属性标识符(fileName) main_axle_load 调用函数writeByCode,
将数据写入到函数中

 ResultVO<WriteResult> result = equipmentClient.writeByCode(code, fileName, value);

函数返回结果为result:

{
  "data": {
    "status": "ok",
    "error": null,
    "duration": null,
    "details": [],
    "success": true
  },
  "code": 200,
  "message": null
}

status为ok表示数据写入成功
